SURVIVING GUN FILE (# 956)
Version française

USA

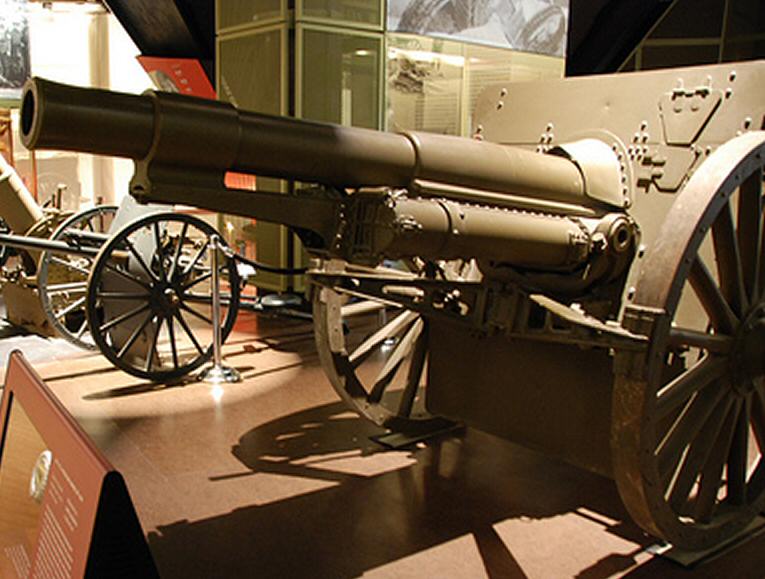

4.7-in fieldgun M 1906 or M 1917

Heavy artillery

Contributor :
(Flickr) KevinH      http://commons.wikimedia.org/


Lien vers post du blog
Location :
USA
Kansas City, MO
Liberty Memorial
Coordinates : Lat : 39.08160 / Long : -94.58730
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

Unknown markings


Historic and technical information
Denomination :     4.7-in M 1906 / M 1917 Origin :       ( Rock Island Arsenal)

Historic context :

Before the war, the US Army only had a little number of artillery weapons developped in their arsenals. Amongst the few, the 4.7 inches M 1906 gun, designed by the Rock Island Arsenal, had been produced in small quantities (60 items) from 1908. In 1917, an improved version, the 4.7 inches M 1917 gun, with a longer range, was launched in manufacturing. As a total 417 pieces of the two types have been produced.

It seems that this gun was offering very good performances, particularly in its 1917 version. However, the production has never been pushed too high, so that only 48 such guns were delivered to France before the armistice. Moreover, its specific calibre imposed the ammunitions had to be shipped from USA...

Because of that, it was seriously planned to rebore the tubes to a 120mm calibre, to be able to use French ammunitions, when someone hopefully realized that this calibre had been abandoned by the French army... 16 guns only were modified that way.

Technical data :

  • Complete description : 4.7 inches fieldgun model 1906 and model 1917
  • Design year : 1906
  • Calibre : 119.40 mm
  • Weight in firing position : 3660 kg
  • Weight for transportation :
  • Tube length in calibres : 28.60 / 29.2 calibres (1906 / 1917)
  • Grooves : 0 unknown
  • Projectile weight : 27.2 / 20.4 kg (normal / allégé)
  • Initial speed : 519 / 712 m/s (normal / light shell)
  • Fire rate :
  • Range : 8750 / 10000 m (1906 normal / light shell); 15000 m (1917)
  • Elevation range : -5 / +15 degrees (1906); -5 / +15 degrees (1917)
  • Direction range : 6 degrees range
