Historic context :

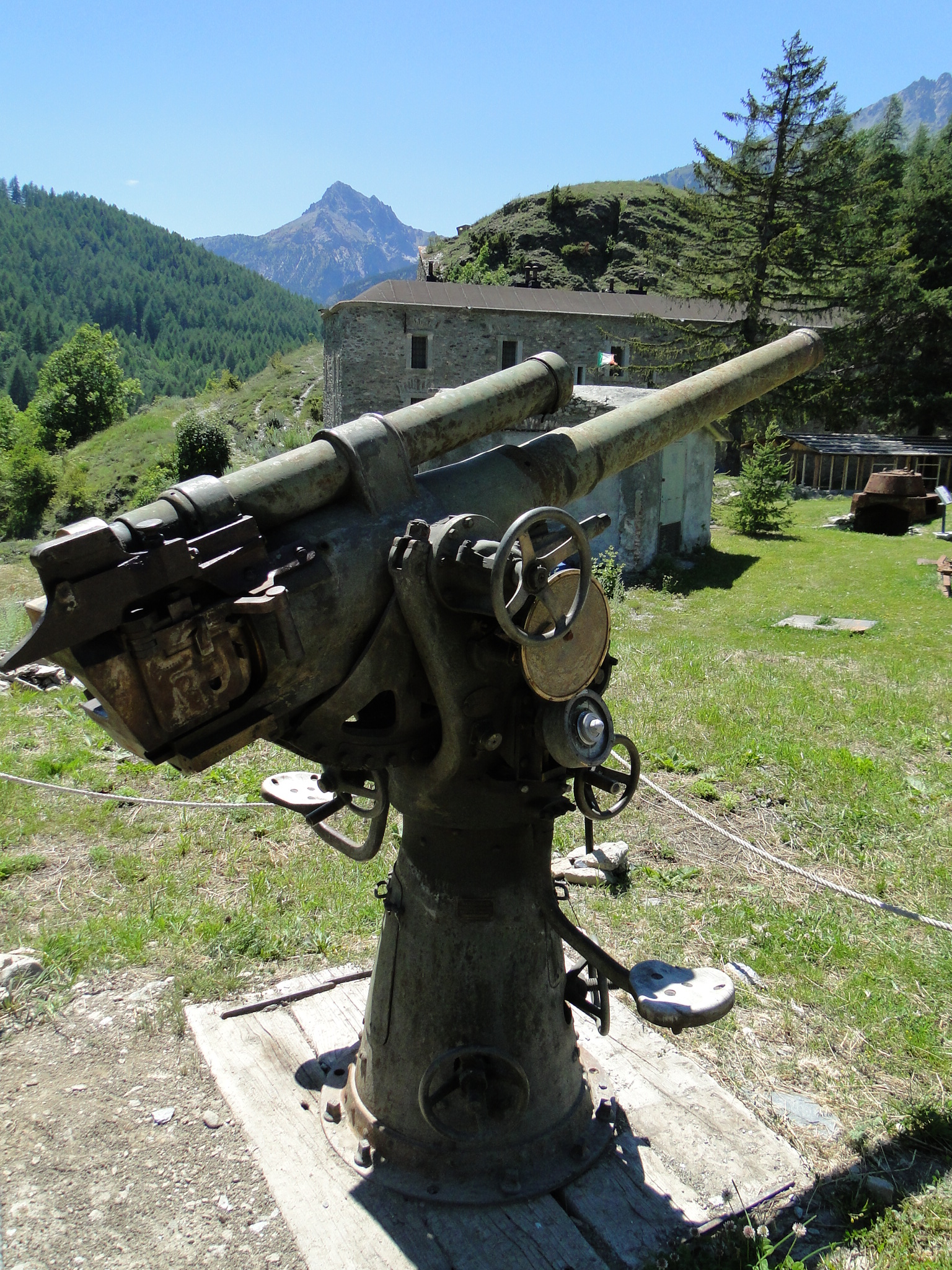

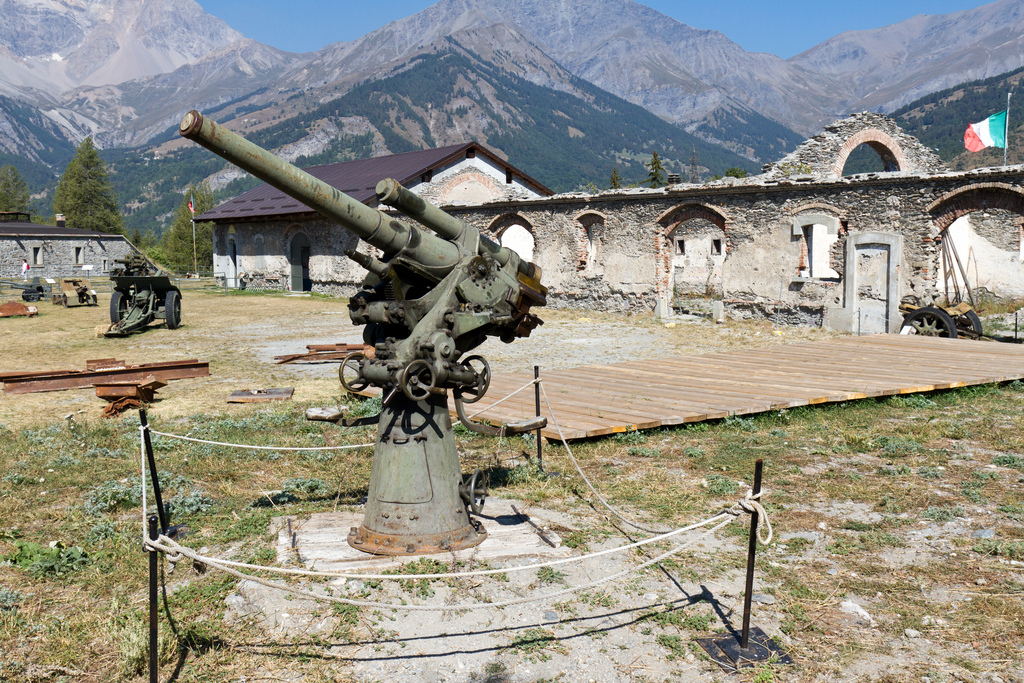

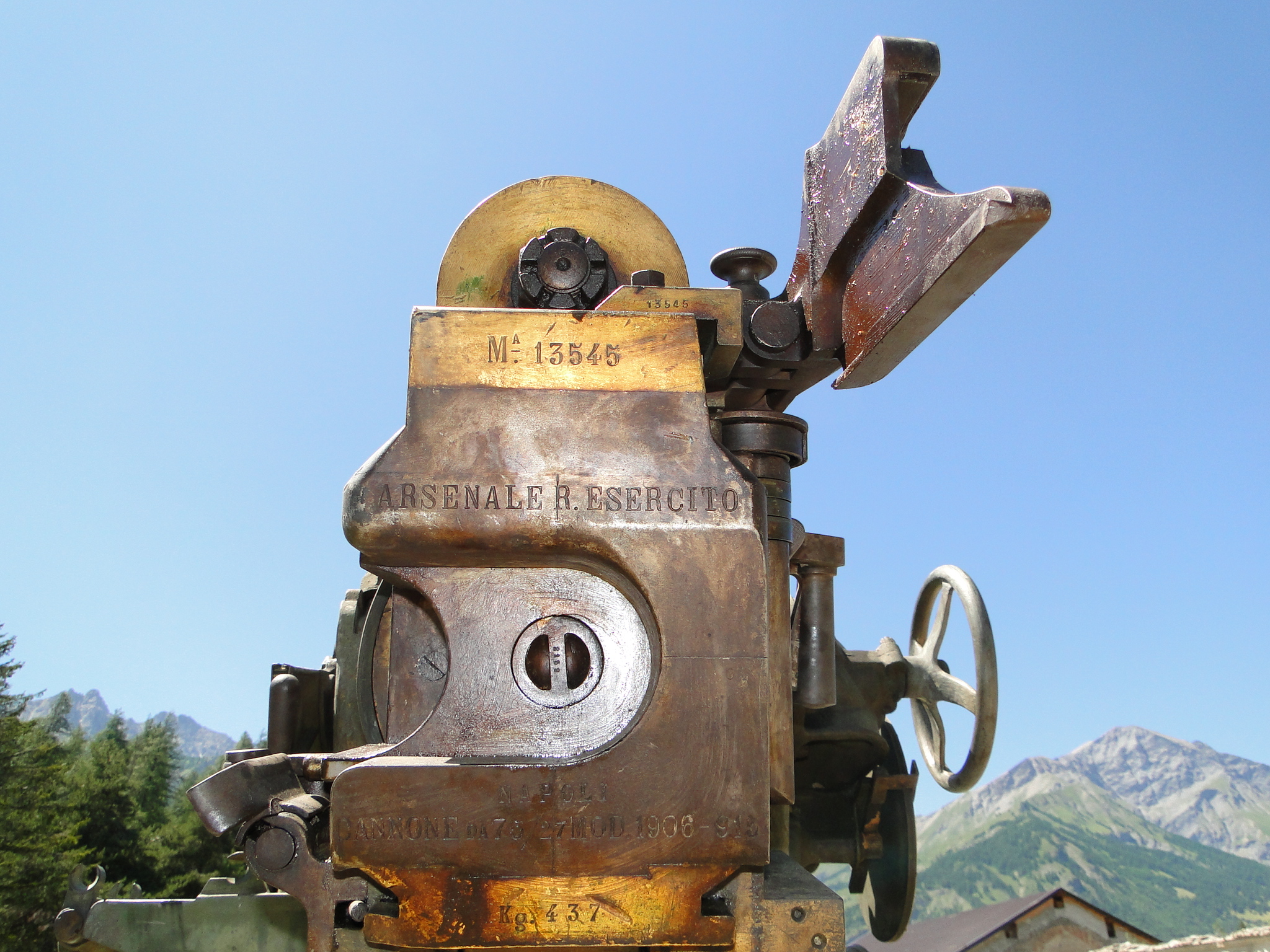

The 'Cannone da 75/27 C.K.' has been developed by the Napoli Arsenal on the basis oif the Krupp 75/27 modello 1906 fieldgun to respond to the demand of a mobile anti-aircraft gun. The barrel, whose mouth had been remachined and having received new bronze parts on its breech, was equipped with a new 2 cylinders hydro-spring recoil recuperation system and mounted on a pivot mount.

The gun was initially designed for being placed on the platform of a Italia X or Fiat 18BL truck, but the manufacturing costs and the frontline stabilization induced the production of numerous static guns on the pivot mount : only 72 out of the 165 guns produced during WW1 were of the automobile version.

The 75/27 CK was used during WW1, and until the end of WW2 (then mounted on a new truck Ceirano 50 CMA)

Technical data :

• Complete description : 75 mm / 27 C.K. (Commissione Krupp) antiaircraft gun
• Design year : 1914
• Calibre : 75.00 mm
• Weight in firing position : 1000 kg
• Weight for transportation :
• Tube length in calibres : 28.00
• Grooves : 16 progressive angle, to the left
• Projectile weight : 6.5 kg (explosif)
• Initial speed : 510 m/s
• Fire rate : 15 rounds per minute
• Range : 6100 m
• Elevation range : 0 to +70 degrees
• Direction range : 360 degrees total range

• L'Artiglieria Italiana Nella Grande Guerra           Andrea Curami       Alessandro Massignan             Gino Rossato   1998
• Wikipedia http://fr.wikipedia.org/
• http://www.regioesercito.it/ http://www.regioesercito.it/
