SURVIVING GUN FILE (# 1387)
Version française

Russia

37 mm Trancheinav pushka Obr 1915 R system MF Rosenberg

Trench artillery

Contributor :
Bernard Plumier      http://www.passioncompassion1418.com


Lien vers post du blog
Location :
Russia
St Petersburg
Artillery Museum
Coordinates : Lat : 59.95310 / Long : 30.31530
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

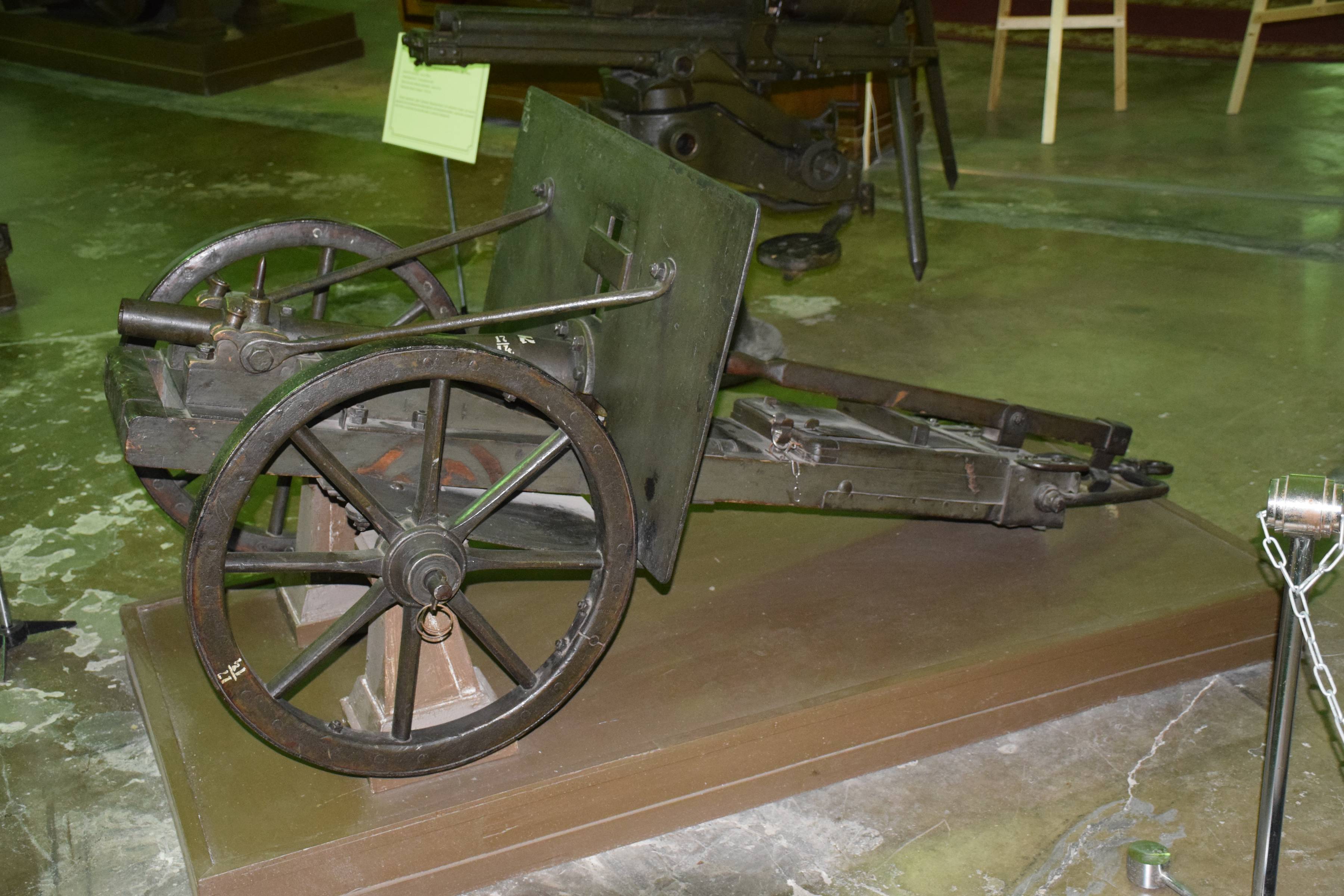

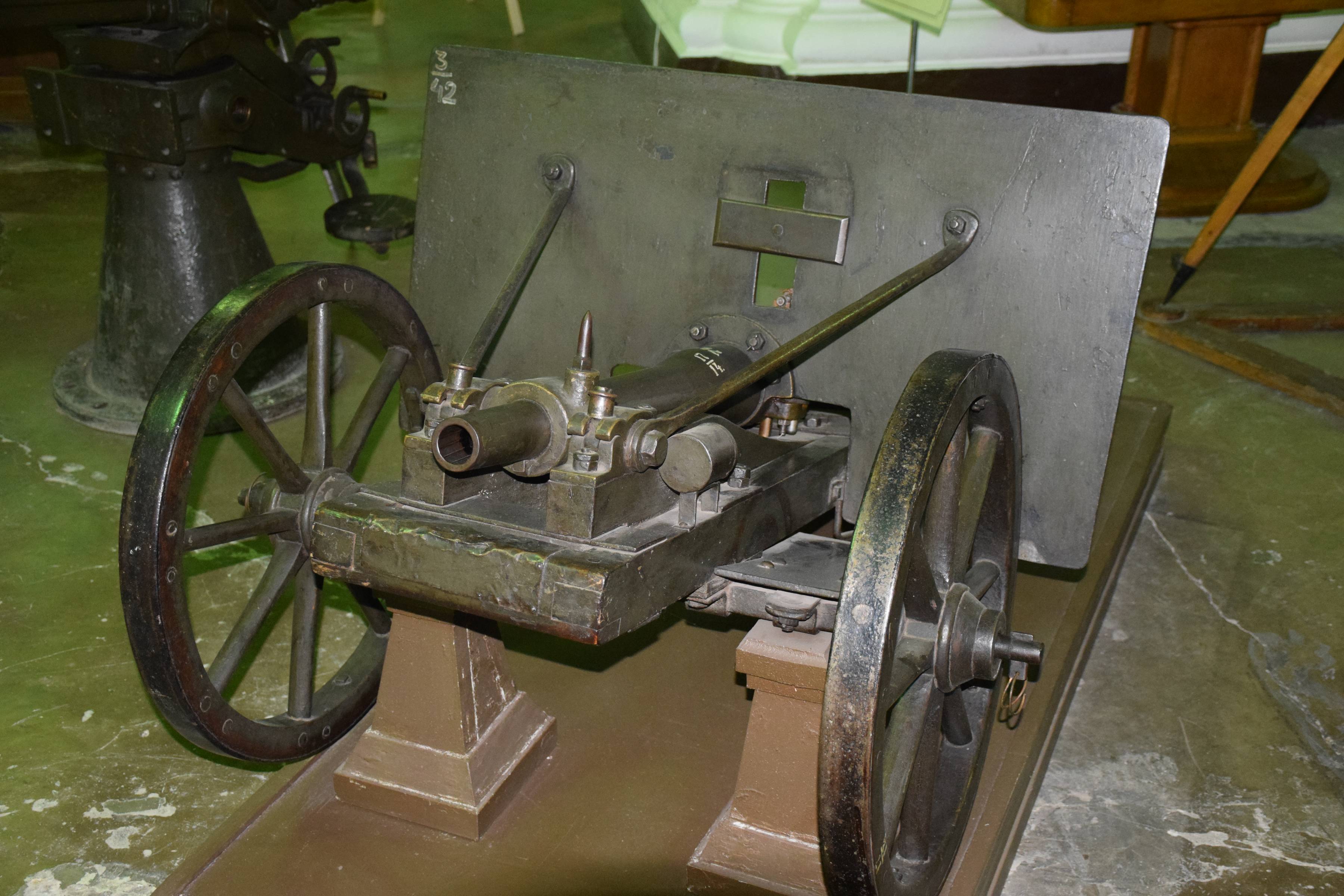

Front view, the shield is positioned on the rear of the barrel

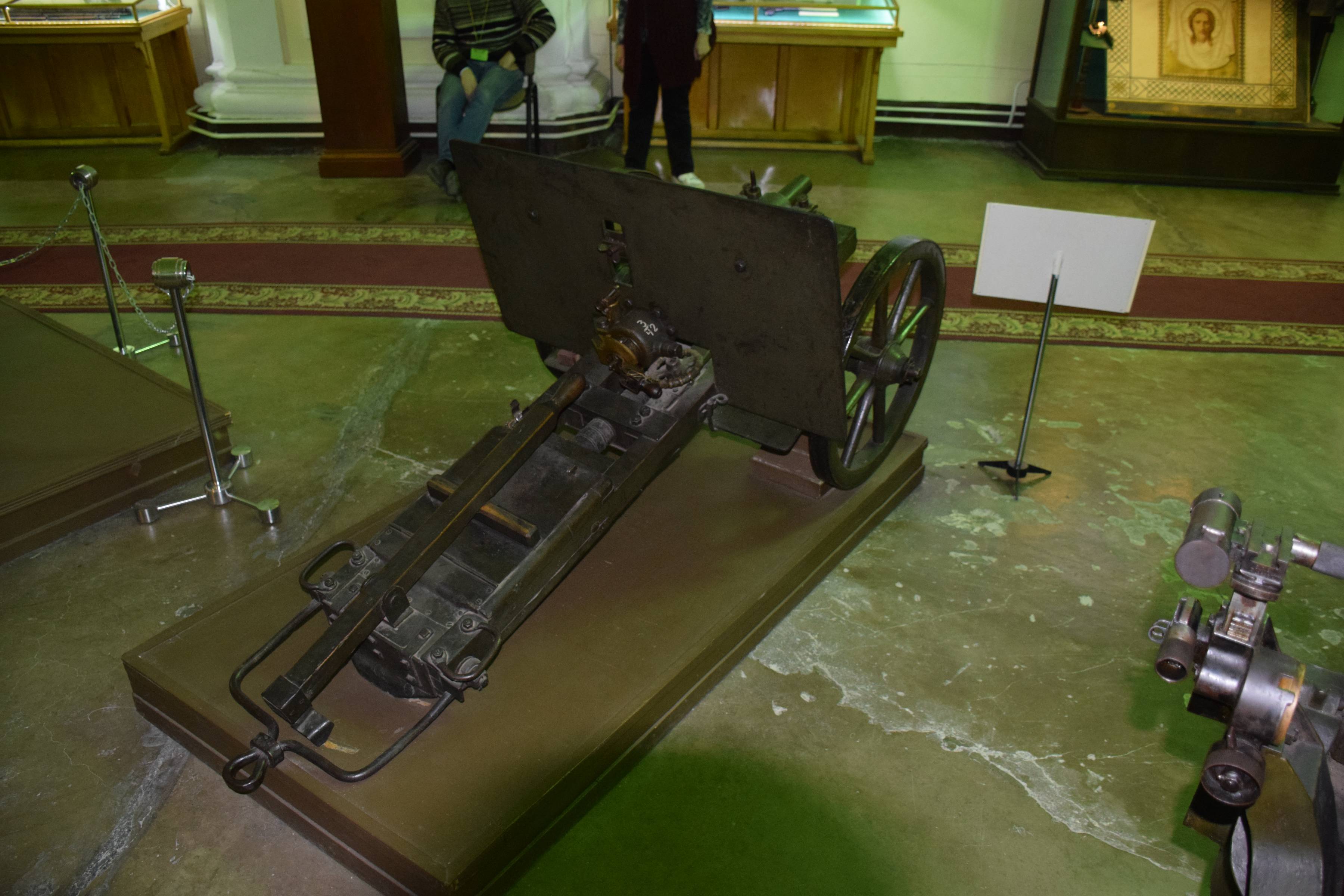

Rear view with the donet buffers rod and the breech


Historic and technical information
Denomination :     37mm Rosenberg M 1915R Origin :       ( Russie)

Historic context :

In 1915, a new type of Russian infantry gun was improvised on the basis of a 37 mm L/20 barrel of a Hotchkiss revolver gun, as for the preceeding 37mm Obuchov M1914 R infantry gun, by the Russian colonel M.F. Rosenberg.

This new infantrey gun '37 mm M 1915 R system Rosenberg' had a real rudimentary design : the barrel was receiving a very simple 1/4 turn opening breech block and two trunnions unusually located at its very front end, attaching it to a craddle rrsting on a heavy wooden base. The recoil movement of the trunnion was very partially absorbed by a series of donut shaped rubber buffers placed on a rod linking the base to a spade. A steel shield could be added either at the front or at the rear of the barrel, and a wheel train attached for transportation.

Several guns were captured by Finland during the 1918 independance war in 1918 and kept with the idea they would be useful as an anti-tank weapon. The winter war fights against USSr in 1939 soon proved this idea was false and all these Russian 37mm Obuchov and Rosenberg system were removed from service.

Technical data :

  • Complete description : 37 mm MF Rosenberg system M 1915 R infantry gun
  • Design year : 1915
  • Calibre : 37.00 mm
  • Weight in firing position : 180 kg
  • Weight for transportation :
  • Tube length in calibres : 20.00
  • Grooves : 0 inconnu
  • Projectile weight :
  • Initial speed : 442 m/s
  • Fire rate : 8 rounds / minute
  • Range : 3200 m
  • Elevation range : +5 to +15 degrees
  • Direction range : unknown


Sources
  • A gun for all nations - The 37 mm Gun and Ammunition - Volume II - 1914-1926           Robert A Mellichamp                     2012
  • Jaeger Platoon - Finnish Army 1918-1945 http://www.jaegerplatoon.net/MAIN.html
