SURVIVING GUN FILE (# 1234)
Version française
Russia

34 lineynaya (8.7cm) Pushka Obr. 1877 Krupp
Light artillery
Contributor :
(Wikimedia commons) Balcer      http://commons.wikimedia.org/


Lien vers post du blog
Location :
Finland
Hameenlinna
Finnish Artillery Museum
Coordinates : Lat : 61.00700 / Long : 24.45880
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

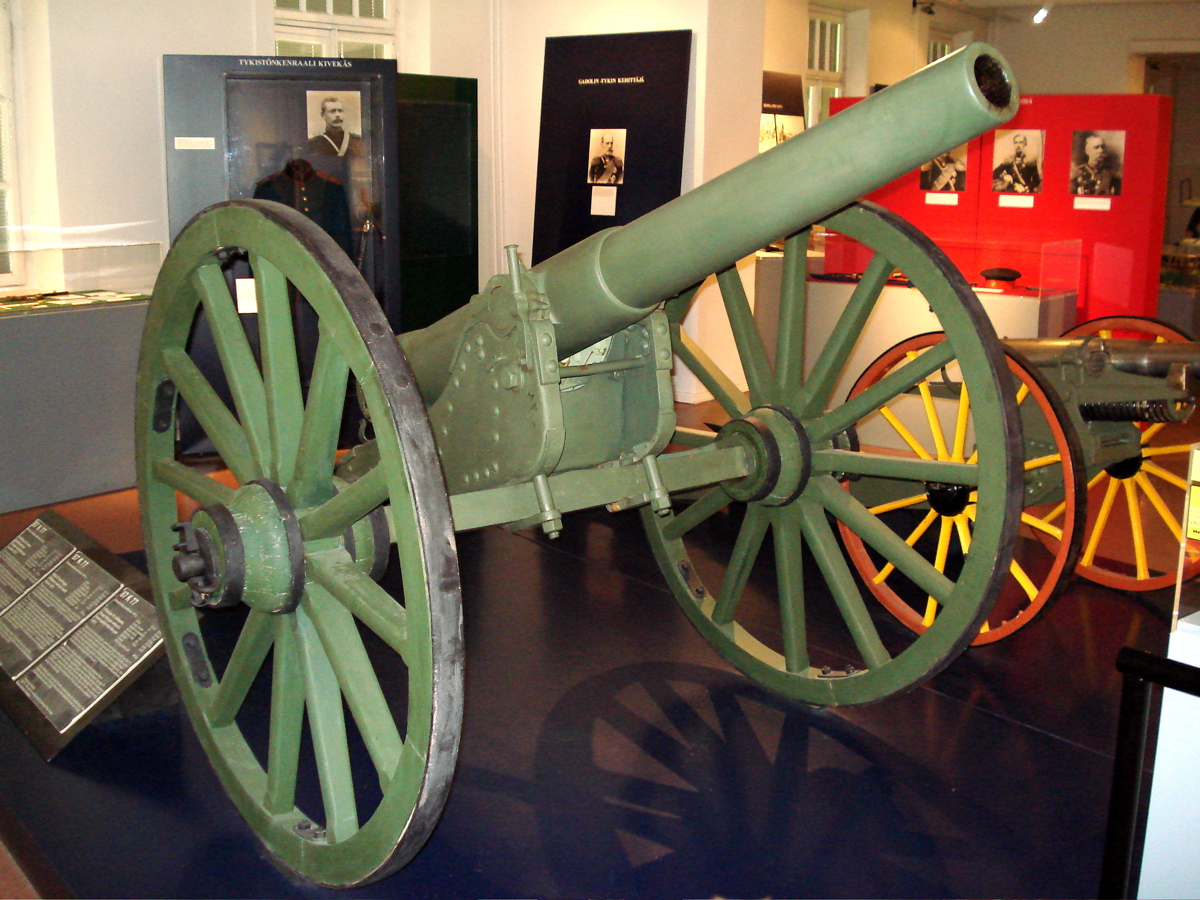

Front view

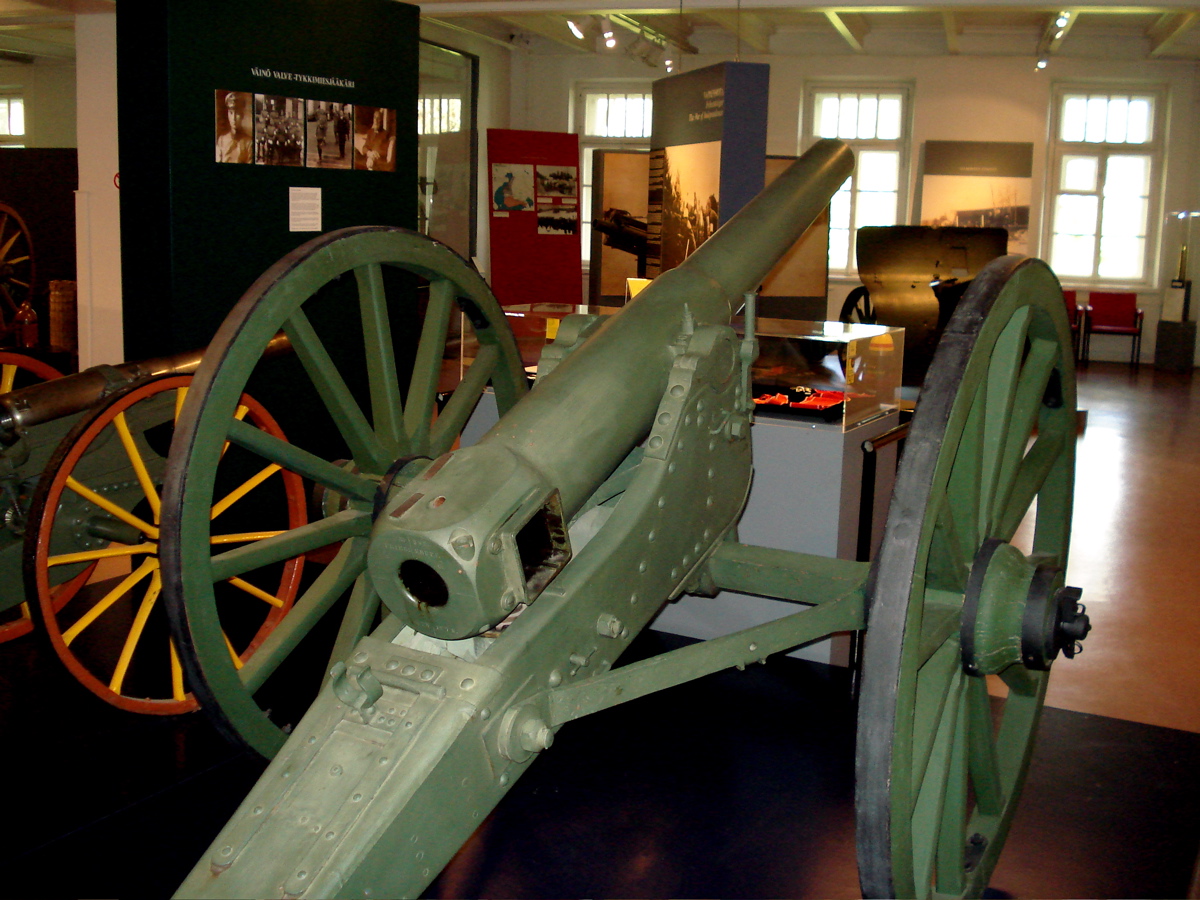

Rear view. Impossible to notice on the picture whether it is an original Krupp production, or a later Russian production

Historic and technical information
Denomination :     8cm M 1877 Origin :       ( Krupp)             ( Obuchov )             ( Russie )

Historic context :

In 1877 the Russian armies ordered 1850 field guns of different variants of the well known 9cm K 73 to the German manufacturer Krupp, that were delivered from 1878 to 1880 (1700 guns only - 935 standard 87mm ; 195 lightweight 87mm and 570 heavy 107mm). Then they continued the production of the same model (with some technological differences) in numerous quantities in the Russian plants of Obuchov (3191 guns), Perm (41 guns), Putilov (108 guns) and Alexandrovsky (36 guns).

This '34 lines - 8cm M1877 fieldgun' had a 34 lines caliber (87 mm - 1 line = 0.1 inch) It was conform with its time standards, with a Krupp type sliding block breech mechanism (replaced from 1893 by a Wahrendorff type rotating breech), and without any recoil recuperation system. The German production carriages can be recognized by the wheel maneuvering the elevation screw, whereas the Russian ones have a steel bar instead.

There were two versions of this weapon :

  • the standard version with a 24 calibre barrel,

  • a lightweight version with a barrel shortened to 18 calibres

These guns were used during the Russo-Japanese war, the world war one, and the Russian civil war , Numerous guns were captured by the Finnish soldiers during the Russian revolution and were used for a short time by this country despite their obsolescence.

Technical data :

  • Complete description : 34 lines (8.7cm) Quick Firing fieldgun M 1877 Krupp
  • Design year : 1877
  • Calibre : 87.00 mm (34 lines)
  • Weight in firing position : 445 kg (360 kg for the lightweight version)
  • Weight for transportation :
  • Tube length in calibres : 0.00 24 (18 for the lightweight version)
  • Grooves : 0 unknown
  • Projectile weight : 6.8 kg
  • Initial speed : 445 m/s (412 m/s for the lightweight version)
  • Fire rate :
  • Range : 6500 m (6000 m for the lightweight version)
  • Elevation range : 0 to +20 degrees
  • Direction range :
