Canon de 75mm Schneider PD06 et PD06 bis

Peça 7,5cm Schneider Canet m904/906

Light artillery

Contributor :
Bernard Plumier      http://www.passioncompassion1418.com
Lien vers post du blog
Location :
Museu Militar
Coordinates : Lat : 38.71339 / Long : -9.12401

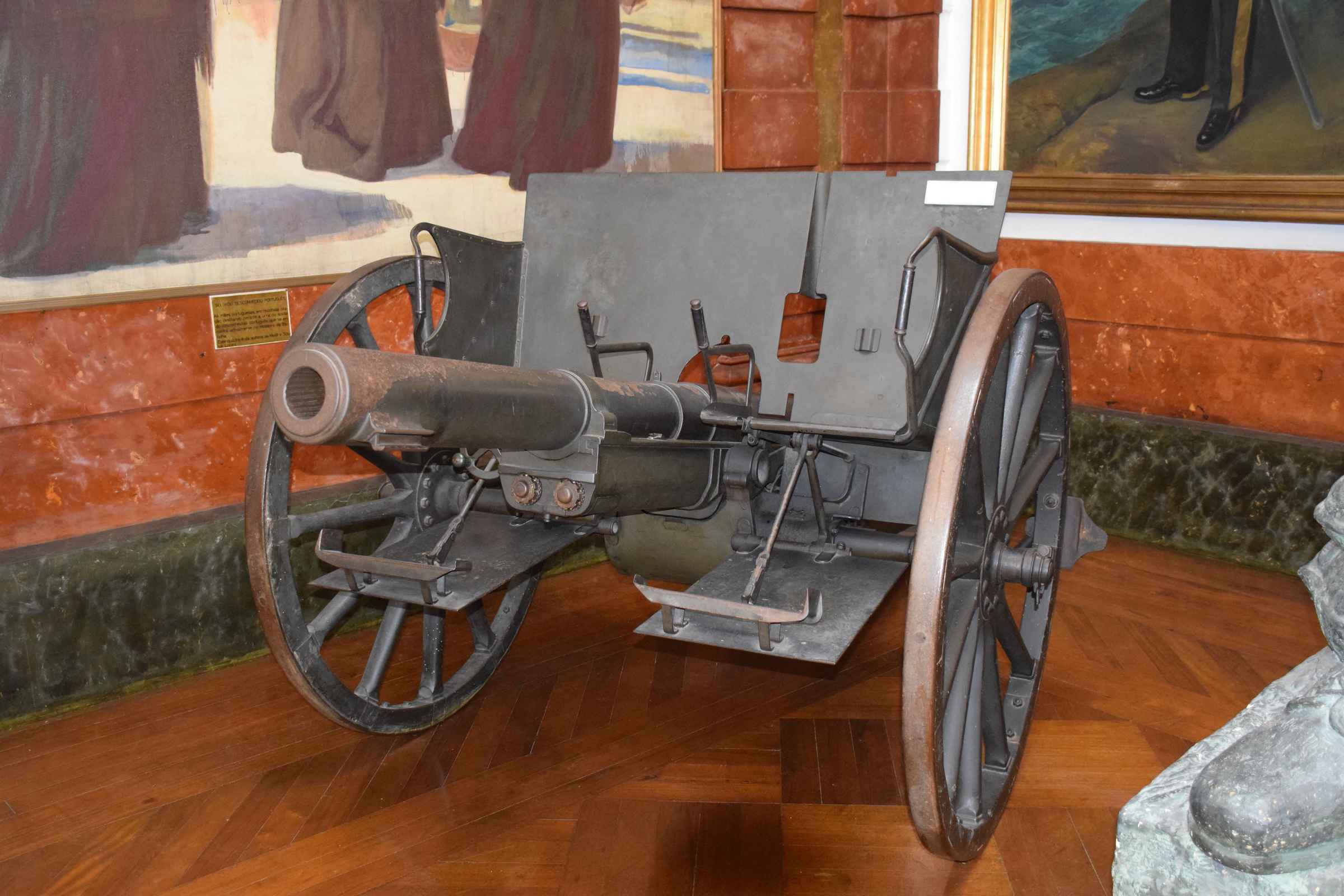

General comments on this surviving gun :

Identical items in the same location : 1
Items covered by this file : 1

Rear view

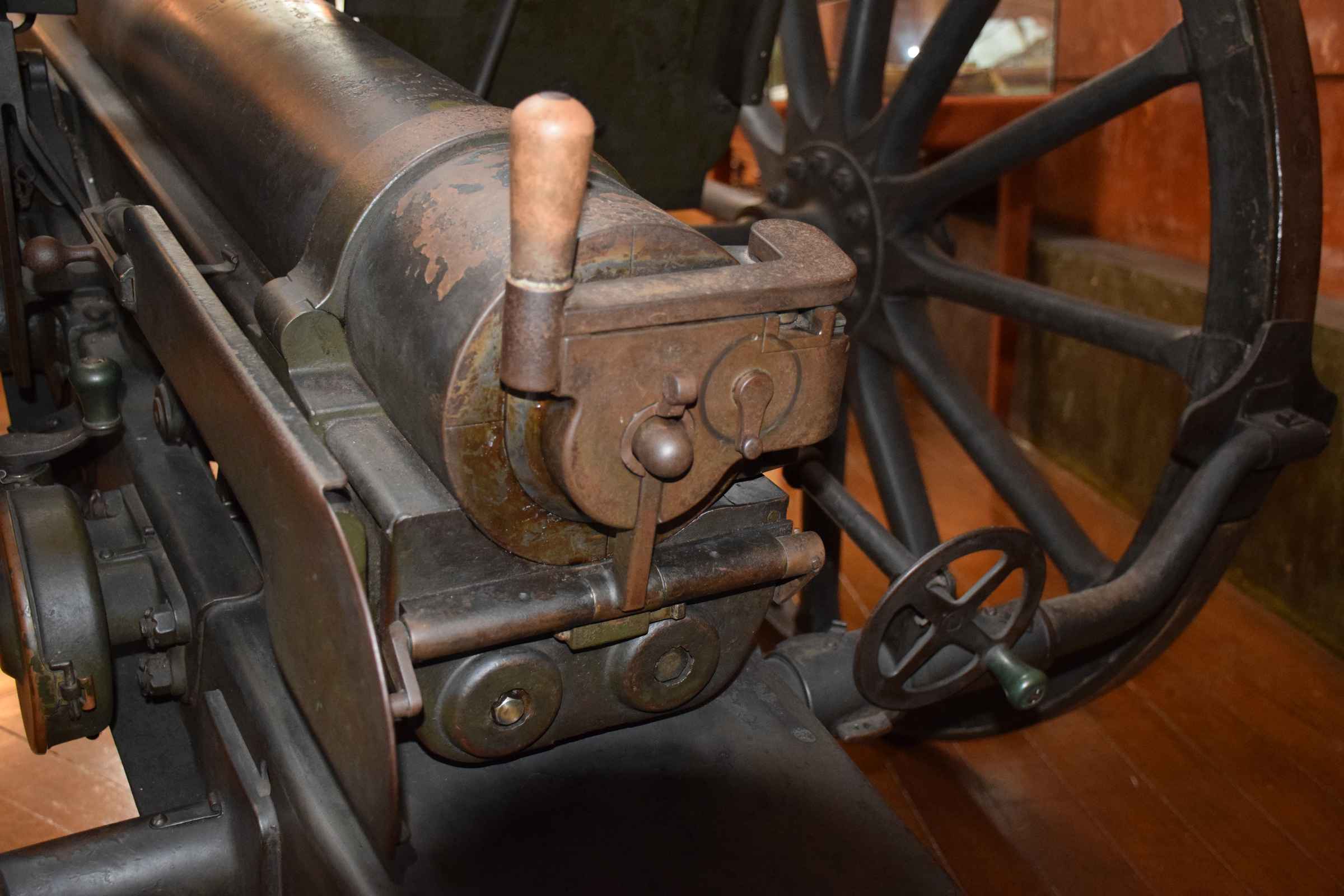

View on the Schneider-Canet breech. Barrel markings : 'Peça de 7.5 TR - Modelo 1904 - Nr 10 - Peso 339' et 'Schneider et Cie - Artillerie Schneider-Canet - Ateliers d'Artillerie du Creusot'

Historic and technical information
Denomination :     75 Schneider PD06 / PD06bis Origin :       ( Schneider)

Historic context :

The Schneider works located in Le Creusot in Burgundy started designing artillery ordnance as soon as the forbidding of war material exportation had been abolished by the French government in 1884. With the help of the engineer Gustave Canet, the company designed numerous very good guns that were sold in big quantities to many countries but France, this country preferring the use of reglementary weapons designed and manufactured in the state arsenals (and sometimes contracted anyway to Le Creusot plant...).

Within the best sellers was the 6th version of a modern 75 mm / 76.2 mm quick firing fieldguns family, present on the Schneider catalog with the denomination 'PD' (= Puissant, ligne de mire organisée pour la Division des opérations de pointage). This 'canon de campagne de 75 mm Schneider PD06' was equipped with the very good quick action Schneider-Canet breech, and a hydro-pneumatic recoil recuperation system that had nothing to envy to the one of the famous reglementary gun 75mm Mle 1897.

The 75mm PD06 gun was delivered to :

  • Serbia, that had in 1914 45 batteries of the PD06 (76.2 mm - called 75 M 1907) version and 40 batteries of the PD06bis (75 mm - called 75 M 1907A) version, that is a total of 380 guns that were almost entirely lost to the enemy during the epic and disastrous retreat of the Serb army in December 1915. Some of them had already been captured by Tirks in 1912 during one of the Balkans wars

  • Portugal (seemingly together with an early version 'PD') with 144 guns delivered, named 'Peça Schneider-Canet 7.5cm m/904-906'.
En 1915 sur intervention directe de Lord Kitchener, la Grande Bretagne obtint de son allié Portugais la livraison de 56 pièces de ce canon à l'Armée Belge. La pièce y prit le nom de 'c75 SP ('SP' = Schneider Portugais) et resta en service jusquùà usure complète en 1917. Certaines des pièces avaient été utilisées en canons de DCA ou de bord.

Technical data :

  • Complete description : 76.2 mm Schneider fieldgun PD06 and 75 mm PD06 bis
  • Design year : 1904
  • Calibre : 75.00 mm (version PD06bis) - 76.2 mm (version PD06)
  • Weight in firing position : 1080 kg
  • Weight for transportation : 1750 kg
  • Tube length in calibres : 31.40 (26.2 calibres for the rifled part only)
  • Grooves : 24 constant angle 6 degrees to the right
  • Projectile weight : 6.5 kg
  • Initial speed : 500 m/s
  • Fire rate :
  • Range : 5800 m
  • Elevation range : -5 à +16 degrees
  • Direction range : 6 degrees total range

  • Les canons de la Victoire 1914-1918 - Tome I - L'Artillerie de campagne           Pierre Touzin       François Vauvillier             Histoire et Collection   2006
  • Bulgarian Artillery 1878 - 1918 https://www.bulgarianartillery.it/
  • Schneider et Compagnie - Matériels d'artillerie mis en service sur les fronts alliés 1914 - 1917       Collectif                     1917
  • L'Artillerie Légère de Campagne Belge de 1900 à 1940 - Tome I       Colonel Roger Lothaire                   Editions du Patrimoine Militaire   2011
  • L'Artillerie Légère de Campagne Belge de 1900 à 1940 - Tome II       Colonel Roger Lothaire                   Editions du Patrimoine Militaire   2012
