SURVIVING GUN FILE (# 1119)
Version française

Austro-Hungaria

8 cm SchartenDemontierKanone M.17

Fortress artillery

Contributor :
Bernard Plumier      http://www.passioncompassion1418.com
Michael Lenz

Lien vers post du blog
Location :
Italy
Rovereto
Museo Storico Italiano della Guerra
Coordinates : Lat : 45.88840 / Long : 11.04840
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

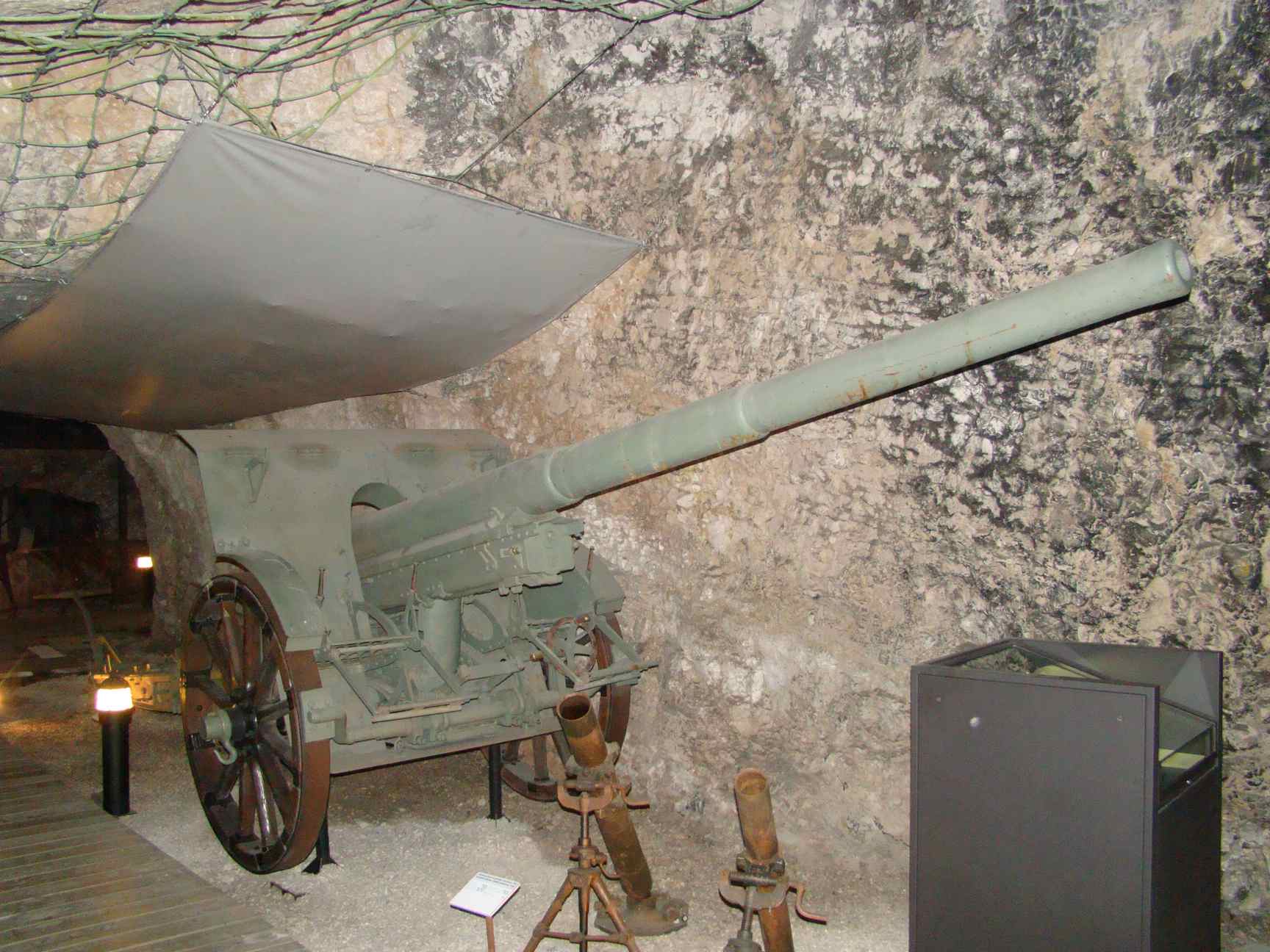

Very rare gun, probably unique in the world, with the very long 60 calibre barrel

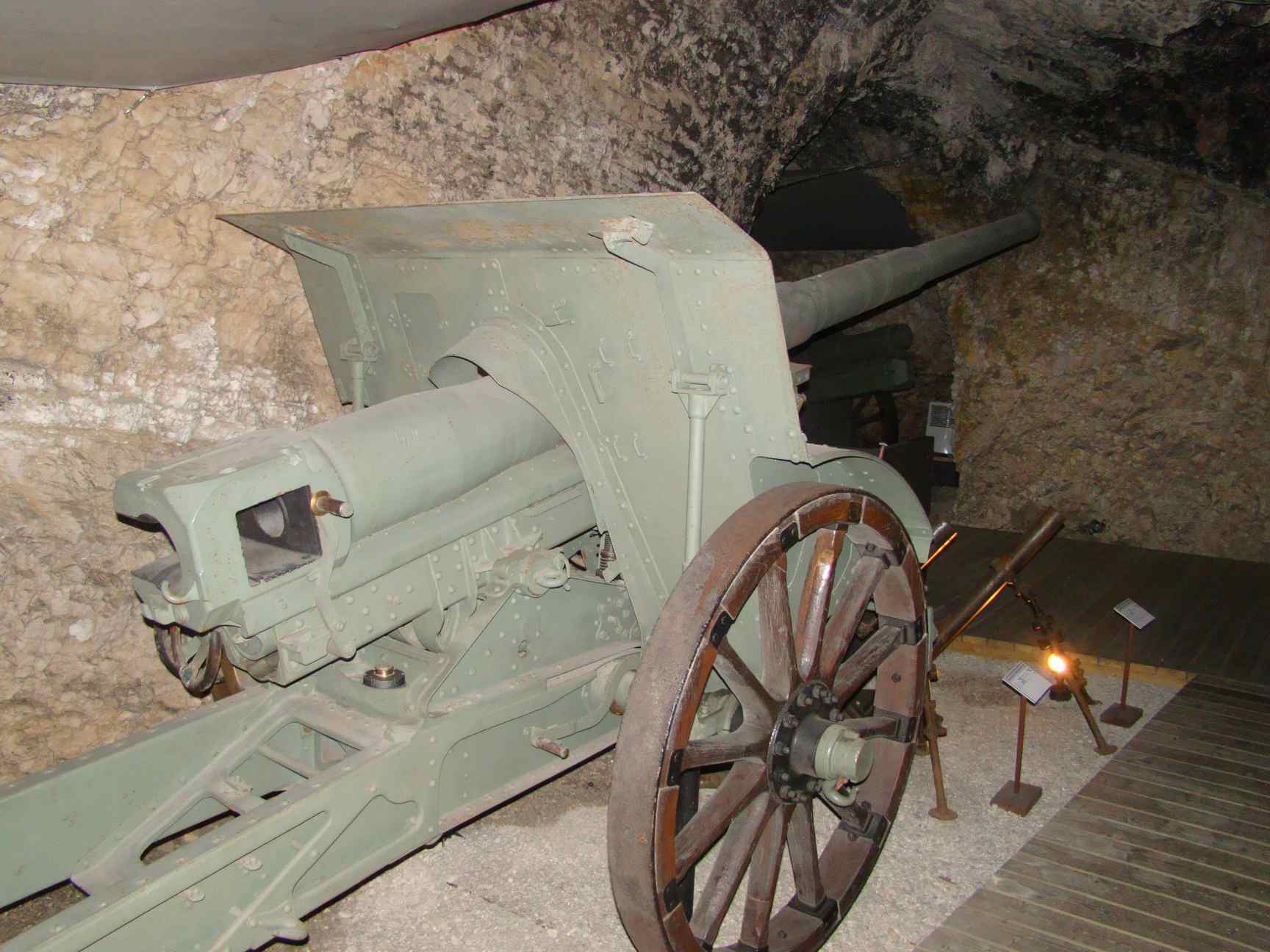

View on the carriage taken from the 10.4cm K M15 Carriage markings : '10.4cm Kn M15 - Skodawerke Pilsen - Nr74'

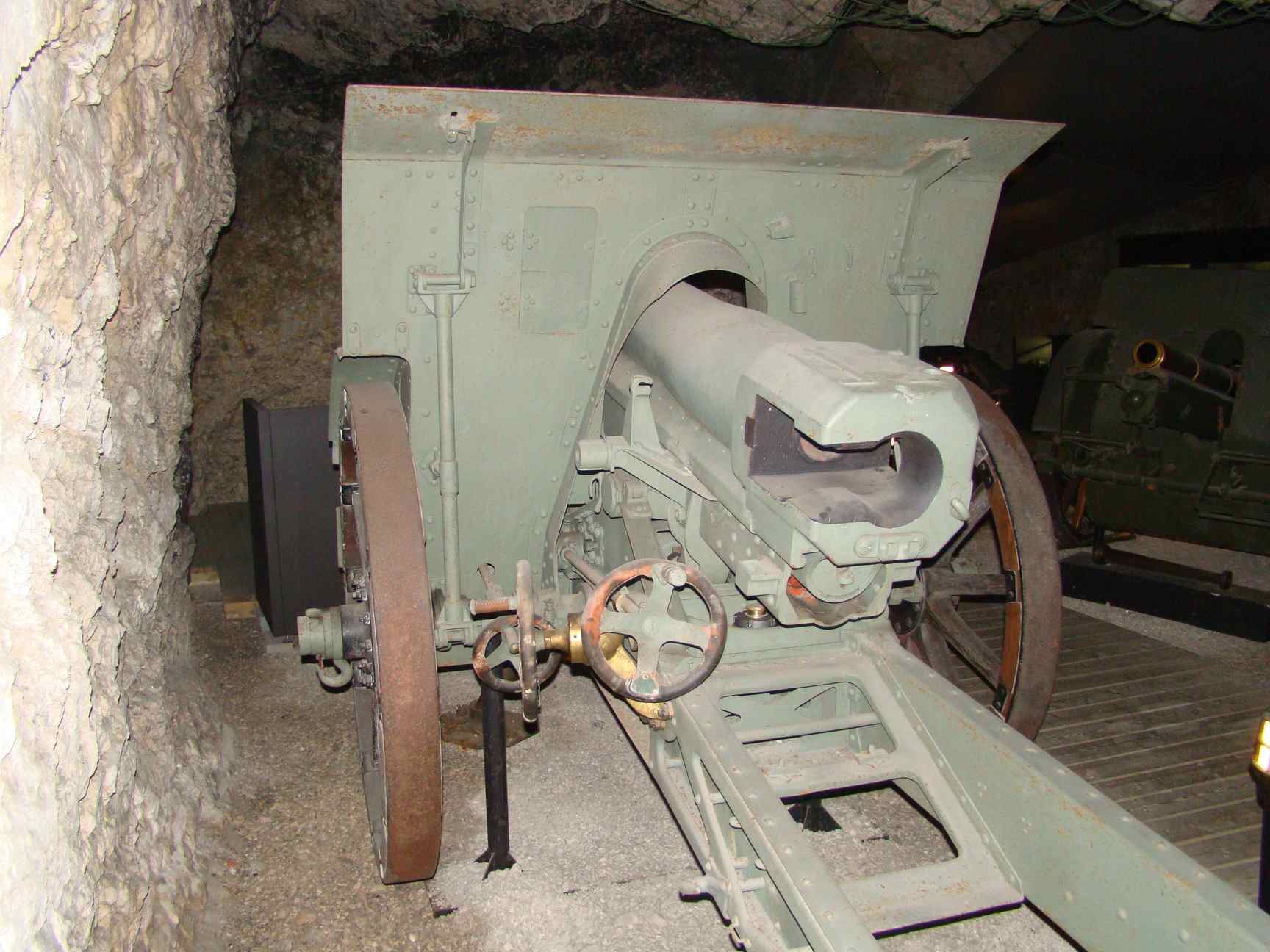

Breech markings : '83.5mm L/30 Feldg. Nr3 - 1916 - 1453 kg'.


Historic and technical information
Denomination :     8.35cm M 17 K Origin :       ( Autriche-Hongrie)

Historic context :

One of the specificities of the warfare in the Alps was the use of concealed enemy artillery guns behind gun-ports, in caverns and in casemates. The 8 cm Schartendemontierkanone M.17 ('SchartenDemontierKanone' = 'embrasuser destructing gun'), sometimes called 8.35cm M17 was designed to destroy or dismantle such specific targets, by adapting a very long 8.35 cm L/60 barrel on the good carriage of the 10.4cm K15 gun.

With the prototype, only 6 or 7 pieces were produced. Interesting is that this gun was very efficient within a certain range interval : above and below it, the efficiency was decreasing fast.

The guns had special sights with very precise quarter(!!)-milliradian (6400 mrad = 360 degrees) to fight this concealed positions, which were often not larger than 2 m by 2 m. The effective rate of fire was a very low 3 to 5 shells per minutes, as the very very long barrel swung a lot after firing.

Technical data :

  • Complete description : 8.35 cm embrasure destructing gun M 1917
  • Design year : 1917
  • Calibre : 83.50 mm
  • Weight in firing position : 3520 kg
  • Weight for transportation :
  • Tube length in calibres : 60.00 (tube length 5020 mm)
  • Grooves : 0 unknown
  • Projectile weight : inconnu
  • Initial speed : unknown
  • Fire rate : 3 to 5 rounds / minute
  • Range : 15000 m
  • Elevation range : -14 to +35 degrees
  • Direction range : 6 degrees total range
